TKA 8800 Service Crane
An 8,800 lb truck-mounted service crane with 22 ft of horizontal reach, continuous rotation, proportional wireless control, and a listed crane weight of 1,610 lb.
Capable Lift, Practical Truck Fit
The TKA 8800 is a hydraulically powered service crane designed for field-service and fleet applications. It combines an 8,800 lb maximum loading capacity with a 63,000 ft·lb rated lifting moment, continuous rotation, and wireless proportional control.
- Lift and position heavy service components in the field
- Work from multiple approach angles with continuous rotation
- Reach into tight or restricted work areas
- Operate with proportional wireless control
Capacity, Reach, and Control in a Service-Truck Package
The TKA 8800 is designed for buyers who need lifting capability without overlooking truck payload, worksite access, and control. Final fitment depends on the chassis, body, hydraulic setup, and the loads being handled.
Capacity
8,800 lb maximum loading capacity and a 63,000 ft·lb rated lifting moment.
Reach & Rotation
22 ft of horizontal reach with continuous hydraulic rotation for flexible load positioning.
Components
Built with proven components including a Braden winch and Hetronic wireless control.
Designed With Payload in Mind
At a listed crane weight of 1,610 lb, the TKA 8800 leaves more of the truck's available payload for tools, parts, body equipment, and the work itself. Actual payload and installation requirements depend on the complete truck build.
- Strong capacity-to-weight profile
- Supports practical service-truck layouts
- Fitment review available before purchase
Final fitment and weight savings vary by truck and build - ask us for a fitment review.
Full Specifications
Review the core TKA 8800 specifications below. Request the full load chart for rated capacity at reach.
| Specification | Value |
|---|---|
| Max loading capacity | 8,800 lb / 3,990 kg |
| Max horizontal reach | 22 ft / 6.7 m |
| Max vertical reach | 24.6 ft / 7.5 m |
| Rated lifting moment | 63,000 ft·lb / 8.7 t·m |
| Crane weight | 1,610 lb / 730 kg |
| Winch speed | 46 ft/min / 14 m/min |
| Cable | 3/8 in · 98.4 ft / 9.52 mm · 30 m |
| Max operating pressure | 2,900 psi / 200 bar |
| Oil flow | 5.3 gal/min / 20 L/min |
| Angle of operation | -10° to 70° |
| Rotation | Continuous (hydraulic slewing bearing) |
| Outriggers | Optional |
Specifications per manufacturer data. Request the full load chart for rated capacities at reach.
See the TKA 8800 From Every Angle

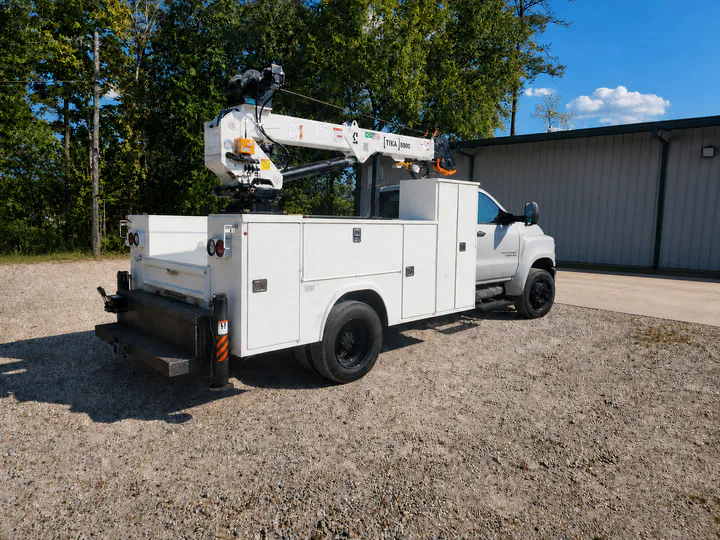

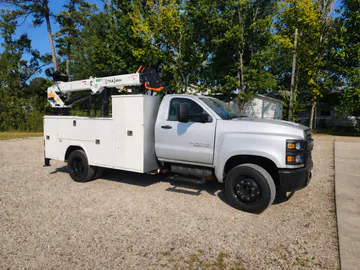

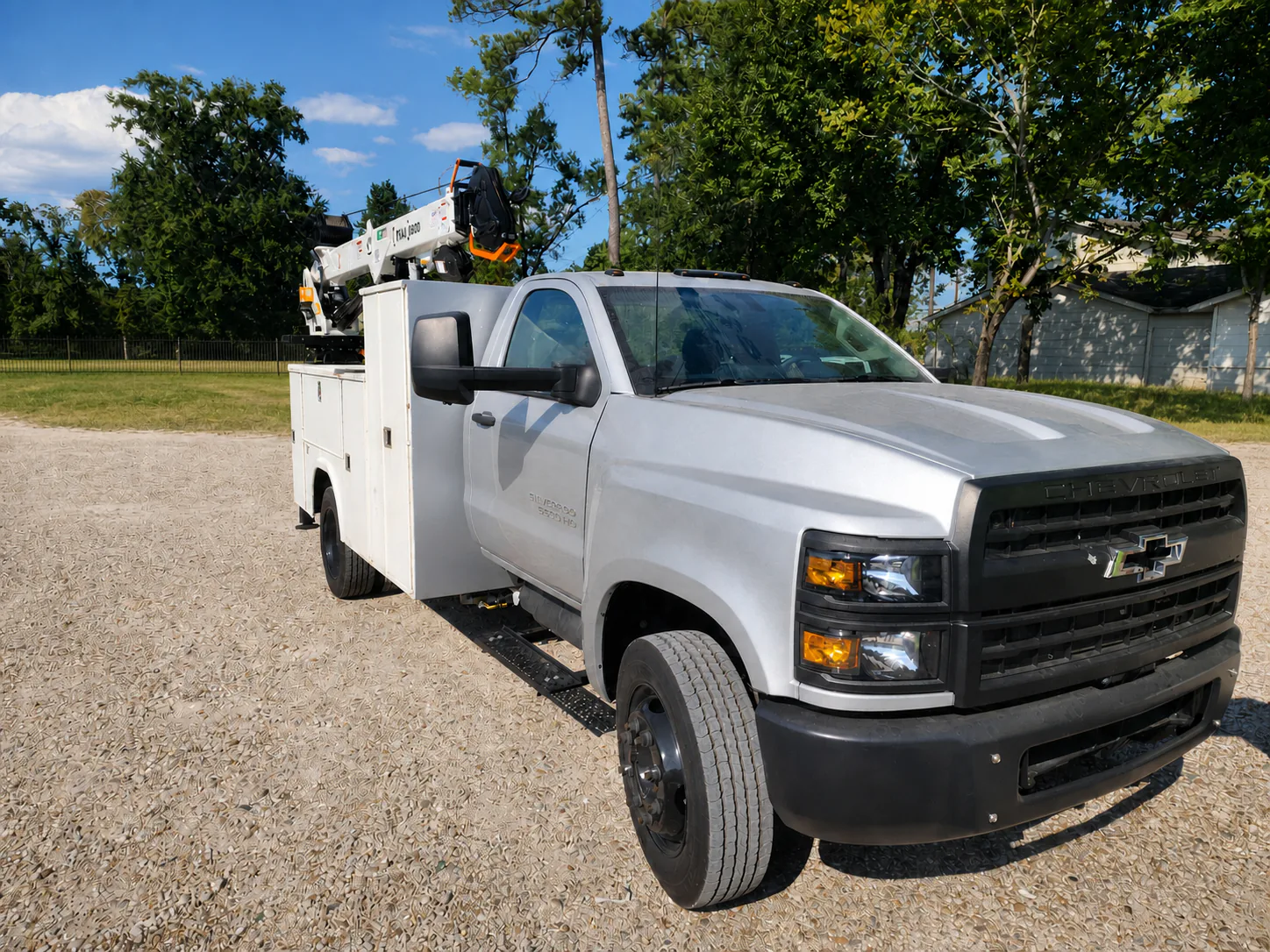

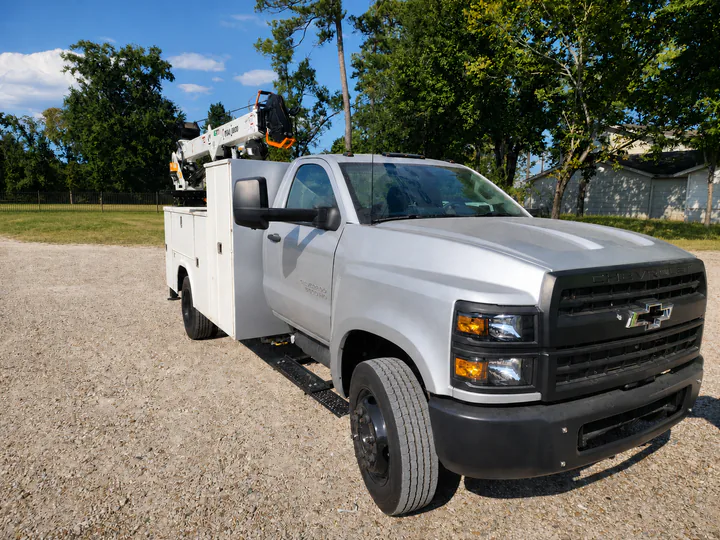

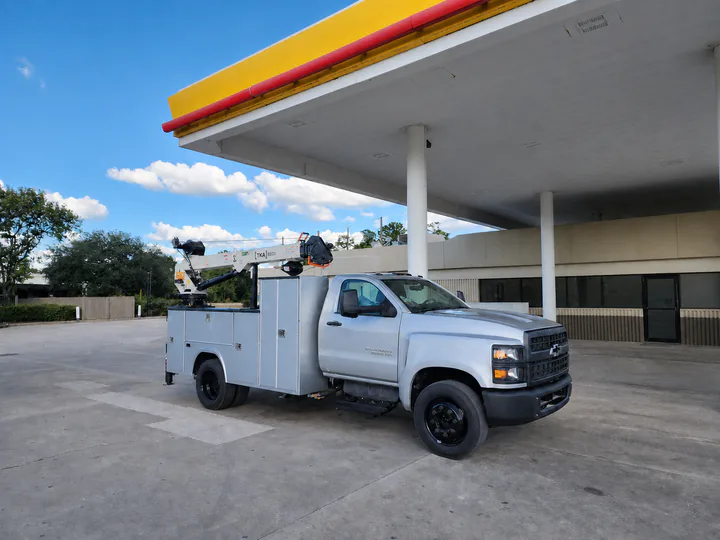

A closer look at the actual TKA 8800 service-crane installation on a Chevrolet Silverado 5500 HD, including the truck profile, service body, crane mounting, and rear equipment layout.
Common TKA 8800 Applications
The TKA 8800 is suited for service and maintenance applications where crews need to lift, place, or remove heavy components from a truck-mounted platform.
Heavy Equipment Repair
Lift and position engines, pumps, cylinders, final drives, and other heavy components in the field.
Explore ›Oilfield & Energy Service
Support maintenance and component handling for pumps, motors, valves, skids, and facility equipment.
Explore ›Utility & Municipal Fleets
Assist with transformers, pad-mount equipment, infrastructure components, and storm-response work.
Explore ›Industrial & Plant Maintenance
Move motors, gearboxes, machinery, and plant components where access and control matter.
Explore ›Key Components
Braden Winch
Dependable line pull for service-crane lifting applications.
Hetronic Remote
Proportional wireless control for more precise load handling.
Hydraulic Slewing Bearing
Continuous rotation for full working coverage around the truck.
High-Strength Steel
A durable crane structure for demanding field conditions.
Will it fit your truck?
The right setup depends on chassis, service body, payload, hydraulic requirements, and stabilizer needs. Send us your truck information and intended lifts, and we will review mounting, hydraulic flow, pressure, and stability considerations.
Request a Fitment ReviewRequest the Load Chart
Capacity changes by reach and configuration. Request the full TKA 8800 load chart so rated capacities can be reviewed against your application.
Request the Load ChartCommon Questions
How much can the TKA 8800 lift?
It carries an 8,800 lb maximum loading capacity and a 63,000 ft·lb rated lifting moment. Capacity at a given reach is defined by the load chart - request it for your application.
What makes it good for tight access?
Continuous hydraulic rotation, a 22 ft reach, and a -10° to 70° operating angle let operators work around obstacles and into restricted or below-grade spaces without repositioning the truck.
What truck do I need?
It depends on your body, payload, and duty cycle. Because the crane weighs only 1,610 lb, it leaves more payload than many comparable units. Send us your truck details and we can confirm fit.
Who handles installation, parts, and service?
We can walk you through installation requirements and support. See our Support & Warranty page or contact our team.
Review the TKA 8800 for your application
Send us your truck and lifting requirements. We will provide the relevant specs, load-chart information, and fitment guidance.
